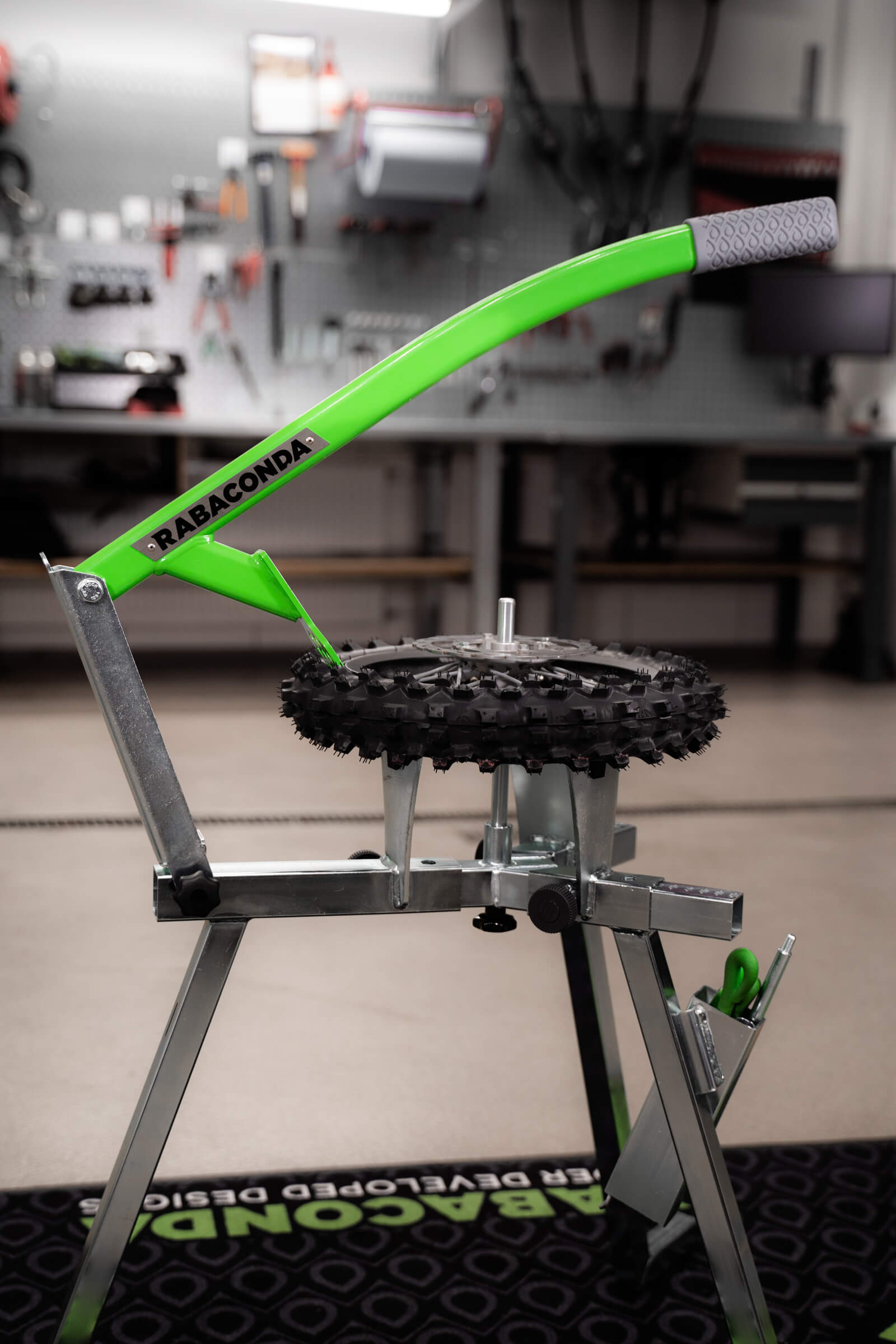

Rabaconda Mini Tire Changer
Rabaconda Mini Tire Changer
The Mini Tire Changer is Rabaconda's small-wheel specific companion to the Dirt Bike Tire Changer. Think Robin to Batman. It's purpose-built for the little tires that no one signs up to change voluntarily, designed to handle 10 to 17 inch tires with axle sizes between 10 and 24mm, which covers many kids' dirt bikes like 50, 65 and 85s as well as many popular pit bike models.
Two spindles ship in the box, a 10mm and a 15mm, plus a 20mm adapter sleeve, so the full 10-24mm hub range is covered the day it arrives. Working height is 28 inches, designed for changing tires standing up. The wheel supports clear a 200mm sprocket on a 10-inch wheel, meaning the standard 49T rear sprocket on KTM SX-E 5, GasGas MC-E and Husqvarna EE bikes fits between the supports without removal.
It works with whatever's inside the tire: tubeless, air tubes, tire balls, mousse bibs, Tubliss. All of it.
It assembles without tools and breaks down to fit into a small carry bag for storage or transport.
Best for: motocross dads and parents of mini-class racers, pit-bike owners who change tires more than once a season and anyone running mousse-equipped small-wheel tires that are otherwise miserable to change by hand. Recommended companion lever: the Rabaconda 10" Tire Iron, sized to match.
(U.S. Patent Pending No. 29/929,692)
- 10mm spindle
- 15mm spindle
- 20mm adapter sleeve
- Mini Drop Center Tool
- User Manual
- Carry Bag
- Sized for the wheels full-size changers can't grip cleanly: 10-17 inch wheels, 10-24mm axles
- Two spindles included (10mm + 15mm) plus a 20mm adapter sleeve, covering the full hub range out of the box
- Comfortable 28-inch working height for changing tires standing up, not crouching on the garage floor
- Proven concept: same lever design as the flagship Dirt Bike Tire Changer with proven 3-minute tire change ergonomics
- Wheel supports clear up to a 200mm rear sprocket on a 10-inch wheel (fits standard 49T rear on KTM SX-E 5, GasGas MC-E 3/5, Husqvarna EE 3/5)
- Tool-free assembly sets up in seconds
- Compact storage: packs into a small Carry Bag; total weight 27 lb, fits in the back of a van or under a workbench
- Backed by Rabaconda's lifetime warranty
- Works for 10-17 inch wheels
- Axle/hub range: 10-24mm (10mm and 15mm spindles + 20mm adapter sleeve included)
- Working height: 28 inches
- Maximum sprocket clearance: 200mm on a 10-inch wheel
- Compatible tire types: tubeless, air tubes, tire balls, mousse bibs, Tubliss
- Total weight (incl. Carry Bag): 27 lbs.
- Carry Bag dimensions: 28 x 11 x 10 inches
- Materials: galvanized and powder coated steel, durable plastic wheel supports
Take the Frustration Out of Changing Small Bike Tires
The Mini Tire Changer was purpose-built to take the frustration out of changing small bike tires. As parents of young riders ourselves, we couldn’t take the struggle anymore! The Mini Tire Changer makes life easier for moto dads everywhere (and us) when it comes to changing 10-17 inch tires.
Swap Mini Tires Quickly & Easily
The Mini Tire Changer has all of the hallmarks of our legendary Dirt Bike Tire Changer, letting you swap tires on small bikes like a professional without opening up the cuss bucket while becoming the coolest dad in the pits.
- It’s lightweight, compact and portable
- Comfortable working height…no more working on the ground!
- Works with spoked and cast wheels as well as tubeless, mousse and regular tube setups.
- Premium product made in Europe with a lifetime warranty.

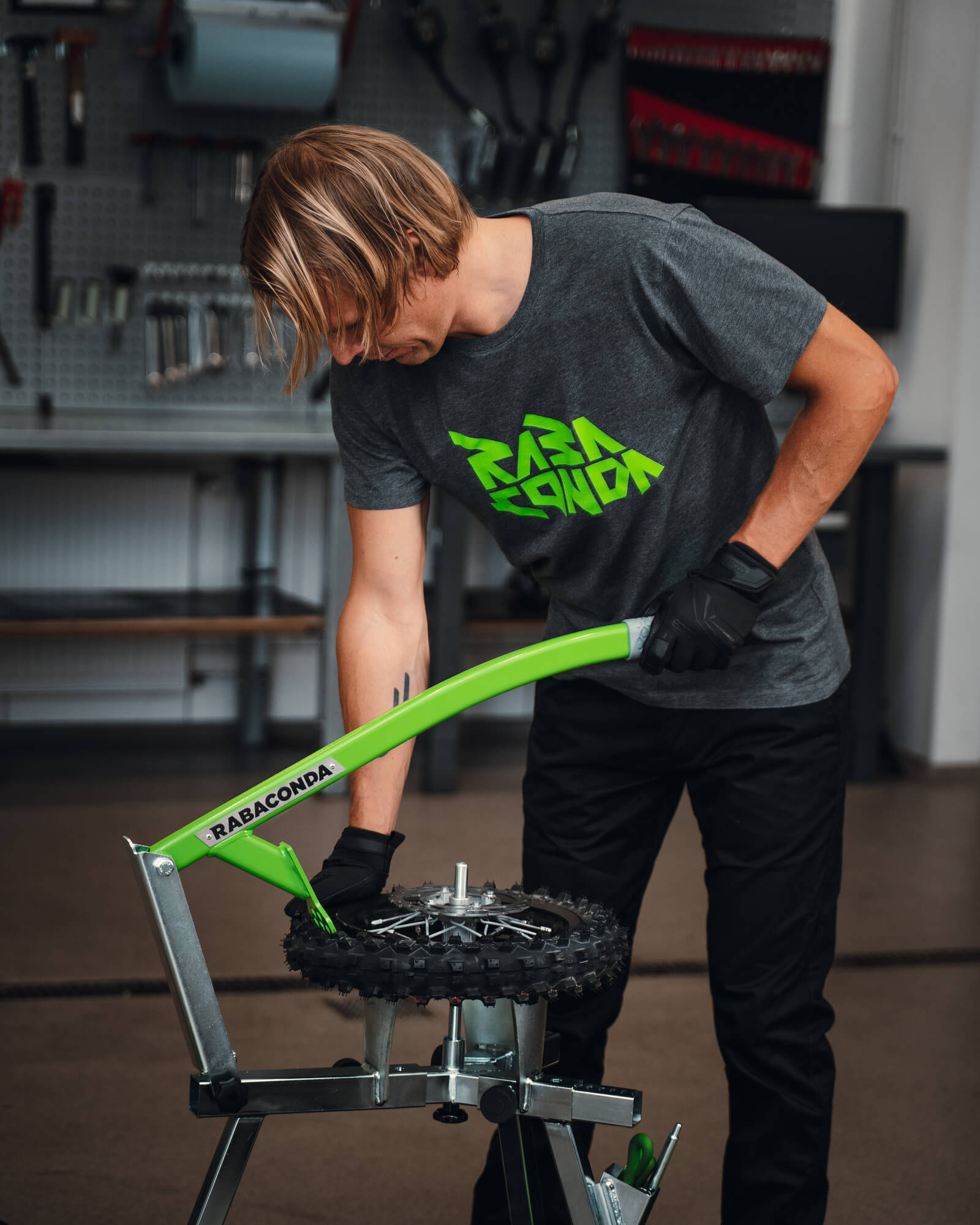

How It Works
1. Assemble Your Tire Changer
Unpack and assemble the changer from its convenient carry bag in seconds, whether you’re garage or trackside.
2. Change Your Tires Quickly & Easily
Dismount the tire with the bead breaker and mount using both the bead breaker and tire irons.
3. Store for Next Time
Break down and pack the tool in seconds and store it until the next time you need it.
